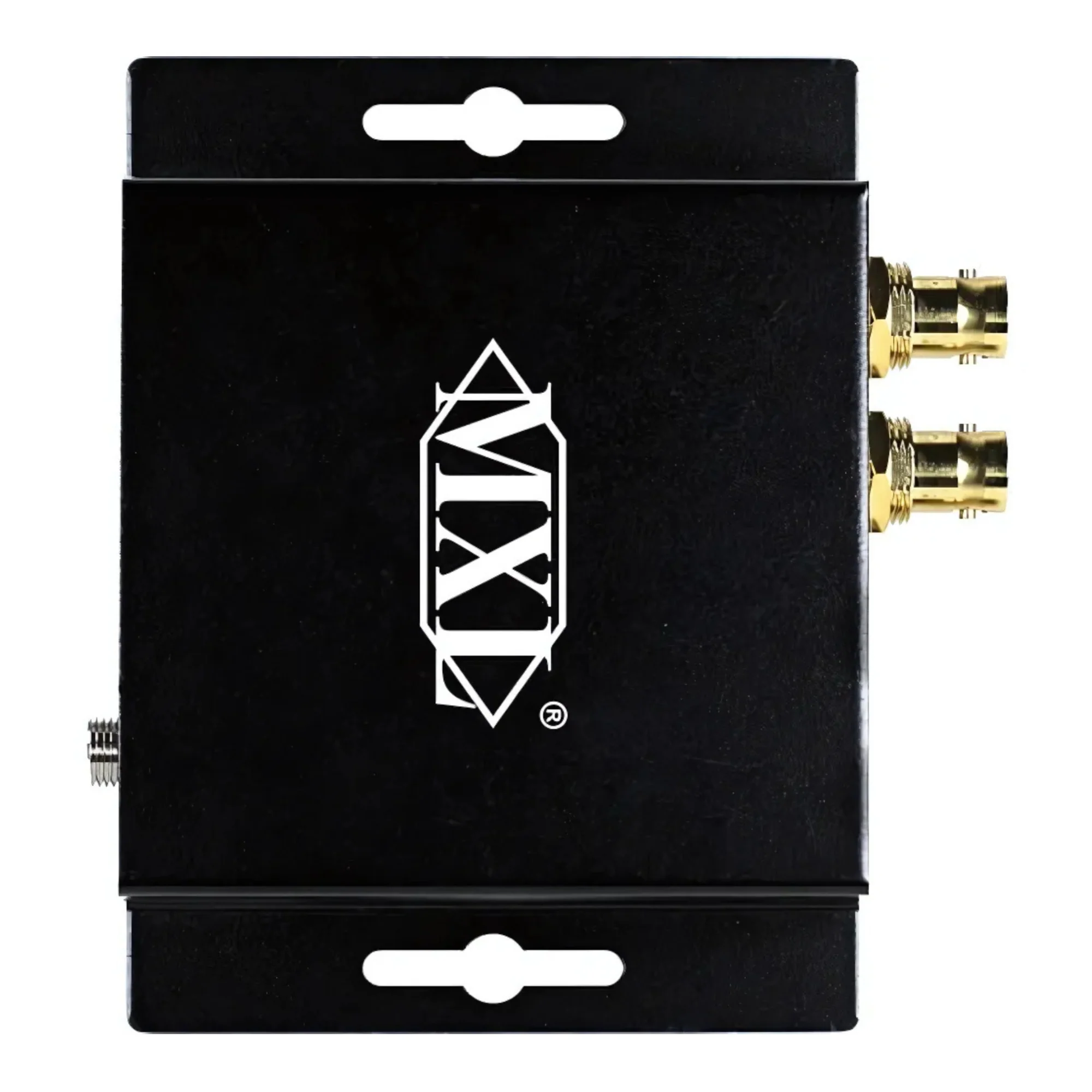

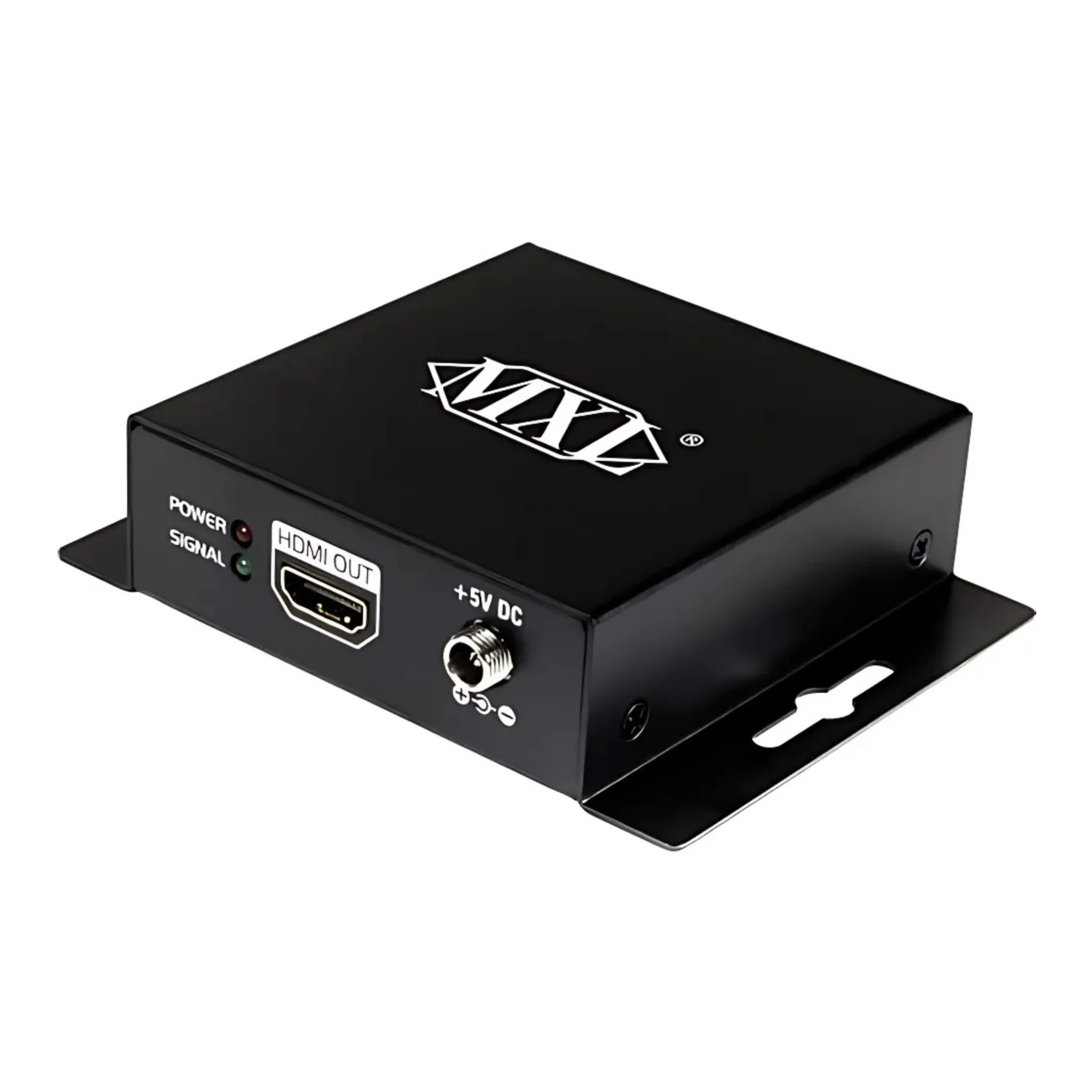

Marshall Electronics VAC-12SH Professional 3G-SDI/HD-SDI to HDMI Converter with 3GSDI Loop-Out

Professional 3G-SDI/HD-SDI to HDMI Converter with 3G-SDI Loop-Out

The VAC-12SH 3G-SDI/HD-SDI to HDMI Converter converts a professional 3G-SDI or HD-SDI signal to an HDMI-compliant format that can be viewed on consumer monitors. The conversion between SDI and HDMI is purely digital and guarantees no loss of audio and video data. Embedded audio is supported*. The VAC-12SH also provides two (SDI and HDMI) low-jitter, re-clocked outputs for multiple monitors.

Supported high-definition (HD) formats:

• NTSC 525@59.94, PAL 625@50, 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60, 1080p/pSF@23.98 , 1080p/pSF24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60
• Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
• Auto 3G-SDI/HD-SDI detection
• Support HDMI Deep Color
• One SDI-compliant output and one HDMI-compliant output

*SDI supports 48KHz. Dolby True HD and DTS HD are not supported in SDI
