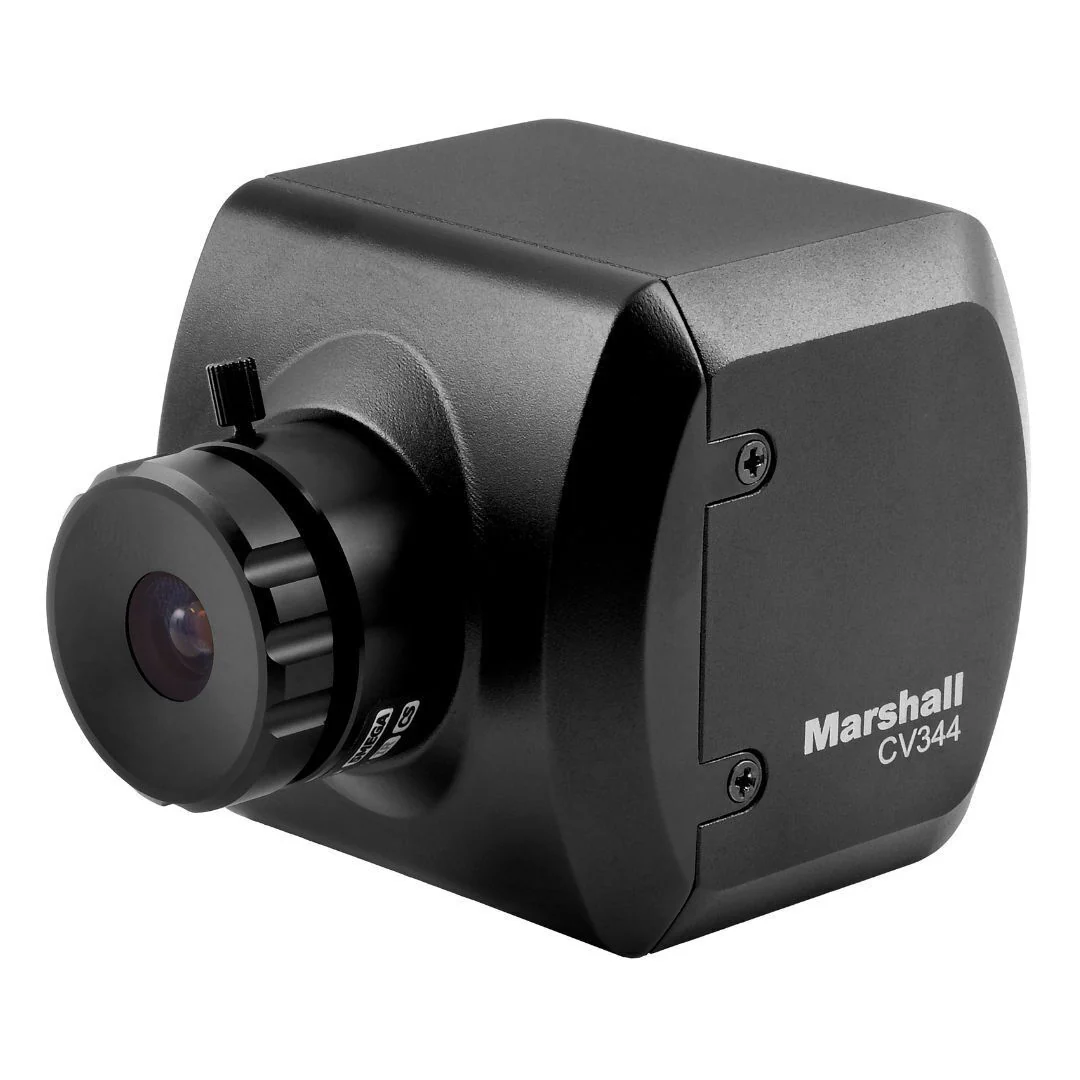

The Marshall CV344 Full-HD Miniature Camera Body Only offers performance, flexibility, and value in a compact form factor. Built around a next-generation 2.5-megapixel, 1/2.8-inch sensor, the CV344 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60, 59, or 50fps and interlaced 1920x1080i at 60, 59, or 50fps.
Versatile Lens Mount

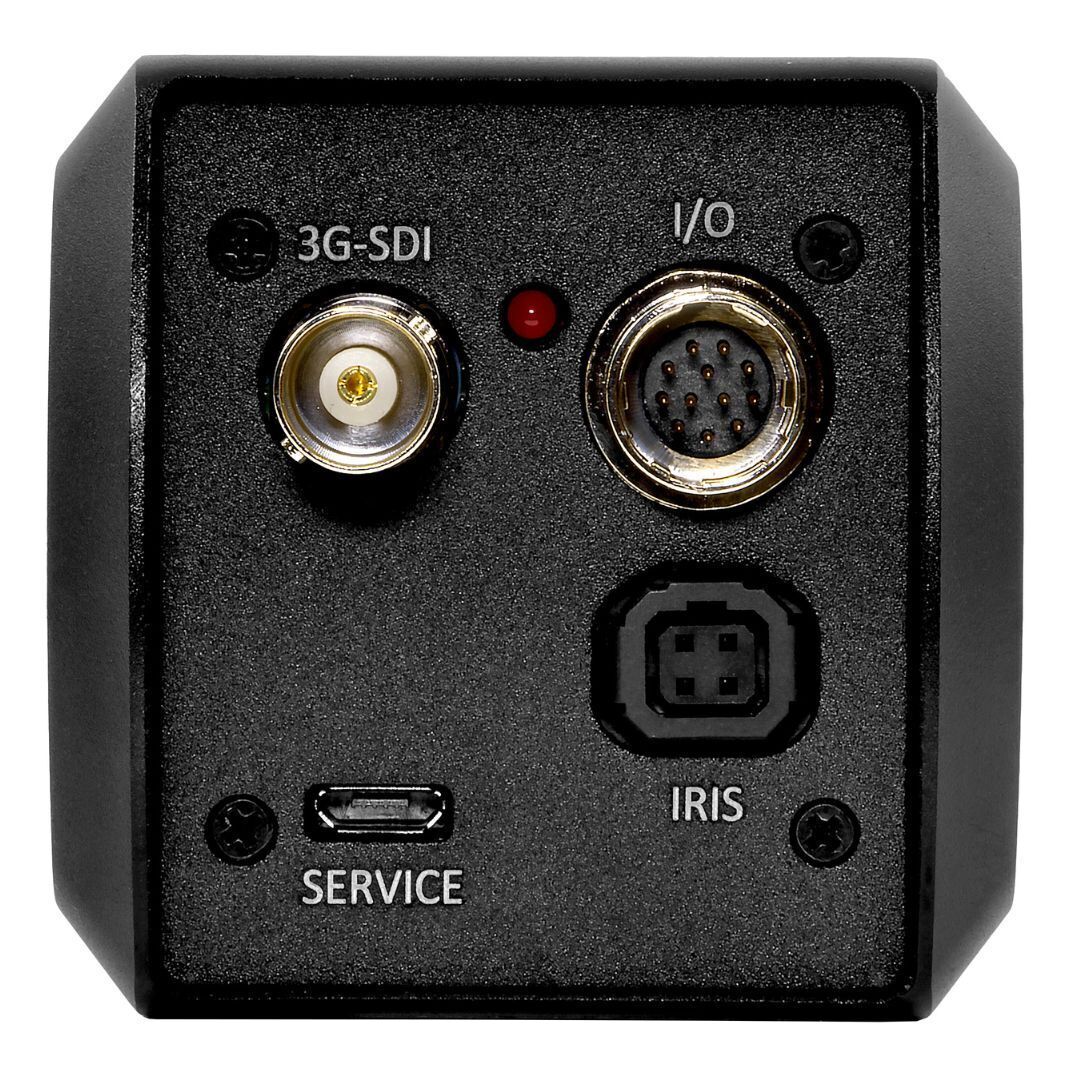

The CV344 utilizes a full-sized BNC (3G and HDSDI) output on the rear panel and a locking I-O connection for power, control, and stereo audio input (embedded on 3G and HDSDI output). The CV344's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.
Compact Control Mastery
The CV344 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on the locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red or blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
Applications
The CV344 is suitable for use in Full-HD broadcast and Pro AV workflows including live broadcast productions, courtroom capture, corporate video, government assemblies, sportscasts, newscasts, reality television, concerts, houses of worship, and many more.
Hirose Breakout Cable
The Hirose breakout cable features an RS-485 input with (plus or minus) wiring, a 12V power input via a 2.1 mm plug with a center contact, and a Hirose connector designed to interface directly with a camera. It includes support for OSD menu control and provides a TRS audio input for mic or line-level signals.
